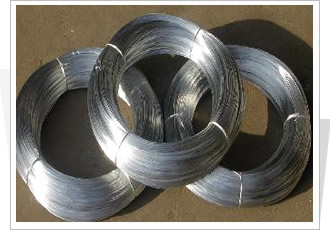

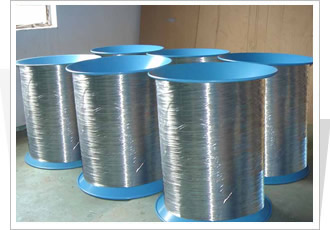

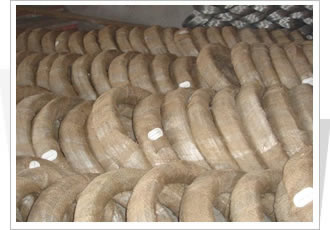

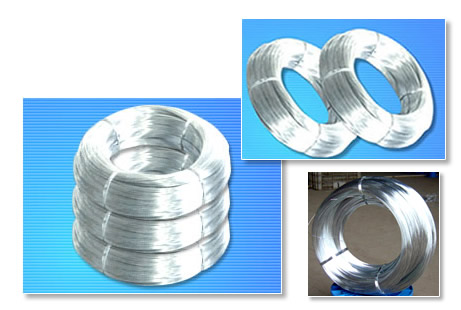

Galvanized wire hot-dip zinc-plated and electro galvanized iron wire are the primary wire products of us. The common sizes applied for electro galvanized wire and hot-dip galvanized wire are from BWG8# to BWG16#. Wire with smaller diameter or bigger one also available for customer choice.
Processing of Hot-dip Galvanized Wire:
We produce good quality hot-dip galvanized iron wire from choice low carbon steel wire, through the process of wire drawing, acid washing and rust removing, annealing and coiling.
Hot-dip Galvanized Iron Wire Features:
Hot-dipgalvanizedwire we produce offers excellent flexibility and softness. The zinc coating can be 100g/m2, 200g/m2 and 300g/m2.

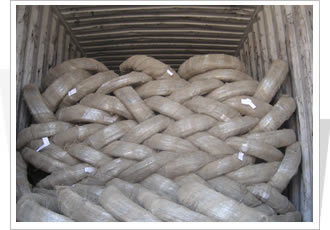

Single coil package for hot-dip galvanized iron wire can be different from 10 kg to 1000 kg.
Custom orders for hot-dip galvanized wire also available.
Hot-dip Galvanized Wire Application:
This kind of wire is extensively used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.
Hot dipped galvanized iron wire is called hot dip galvanized wire, hot dipped galvanized steel wire, hot dipped galvanized wire also. Galvanized iron wireis made of Low carbon steel wire Q195.
Size |
0.9mm |
1.25mm |
1.6mm |
2.0mm |
2.5mm |
3.15mm |
Diameter range (mm) |
+/-0.025 |
+/-0.035 |
+/-0.045 |
+/-0.05 |
+/-0.065 |
+/-0.08 |
Tensile strength (N/mm2) |
340-500 |
Elongation (%) |
7.5 |
10 |
Min. Zinc Coating (g/m2) |
155 |
180 |
195 |
215 |
245 |
255 |
DC resistence (ohms/km) |
216.92 |
112.45 |
68.64 |
43.93 |
28.11 |
17.71 |
Torsion Test (min. Turn) |
33 |
24 |
37 |
30 |
24 |
19 |
|
