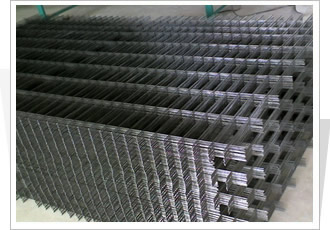

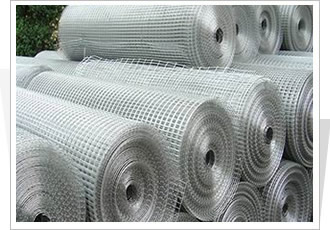

Welded Wire Mesh is known as welded wire or welded mesh by some customers. The structure of this kind of wire mesh is strong, lasting and rust-resistant. It is galvanized after welding. Two ways of galvanization: hot dipped( hot galvanized) & cold(electric) galvanized.

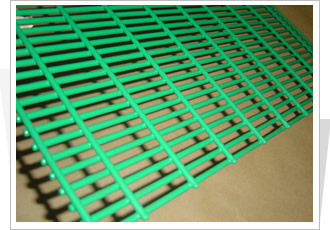

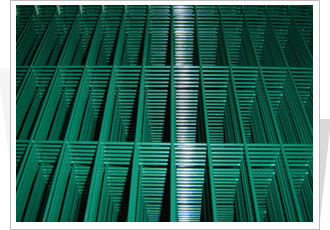

PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before, then coated with PVC powder or PE powder. The coated layer is even,strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements.
Varieties available: Electric galvanized hot-dipped PVC coated.
Width:3', 4', 5', 6', 7'; Packing, other width, length specification can be at buyer's option.
| Specification List of Welded Wire Mesh |
| Opening |
Wire Diameter |
| In inch |
In metric unit(mm) |
| 1/4" x 1/4" |
6.4mm x 6.4mm |
22, 23, 24 |
| 3/8" x 3/8" |
10.6mm x 10.6mm |
19, 20, 21, 22 |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" x 5/8" |
16mm x 16mm |
18, 19, 20, 21, |
| 3/4" x 3/4" |
19.1mm x 19.1mm |
16, 17, 18, 19, 20, 21 |
| 1" x 1/2" |
25.4mm x 12.7mm |
16, 17, 18, 19, 20, 21 |
| 1-1/2" x 1-1/2" |
38mm x 38mm |
14, 15, 16, 17, 18, 19 |
| 1" x 2" |
25.4mm x 50.8mm |
14, 15, 16 |
| 2" x 2" |
50.8mm x 50.8mm |
12, 13, 14, 15, 16 |
Technical Note:
1, Standard roll length: 30m; width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| Galvanized Fencing Mesh |
| Opening |
Wire Diameter |
| In inch |
In metric unit(mm) |
| 2" x 3" |
50mm x 75mm |
2.0mm, 2.5mm, 1.65mm |
| 3" x 3" |
75mm x 756mm |
2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm |
| 2" x 4" |
50mm x 100mm |
2.11mm, 2.5mm |
| 4" x 4" |
100mm x 100mm |
2.0mm, 2.5mm |
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.8m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls. Custom packing available at request. |
|
| |
| PVC Coated Welded Mesh |
| Opening |
Wire Diameter |
| In inch |
In metric unit(mm) |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16, 17, 18, 19, 20, 21 |
| 3/4" x 3/4" |
19mm x 19mm |
16, 17, 18, 19, 20, 21 |
| 1" x 1" |
25.4mm x 25.4mm |
15, 16, 17, 18, 19, 20 |
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.2m.
2, Special sizes available at request.
3, Packing: in waterproof paper in rolls. Custom packing available at request. |
|
|
